OMAL S.S.304/316 Coaxial Valve with 10 bar Max Pressure and -10~+60℃ Temperature Range for Air Flow Control

Product Categories
Airwolf Automation
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

OMAL S.S.304/316 Coaxial Valve with 10 bar Max Pressure and -10~+60℃ Temperature Range for Air Flow Control

Brand Name : OMAL AIRWOLF or OEM

Model Number : VC0E00003 VA0E00003 VD0E00003 VC0E00004 VA0E00004 VD0E00004 VC0E00005 VA0E00005 VD0E00005 VC0E00006 VA0E00006 VD0E00006 VC0E00007 VA0E00007 VD0E00007 VC0E00008 VA0E00008 VD0E00008 VC0E00009 VA0E00009 VD0E00009 VC0V00003 VA0V00003 VD0V00003 VC0V00004 VA0V00

Place of Origin : CHINA, ITALY

MOQ : 1 piece

Price : 70-180USD

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 1000 pcs per week

Delivery Time : 1-3 work days

Packaging Details : plastic bags, carton, pallet

Body Material : S.S.304, S.S.316

Seat Seals Material : EPDM, FKM

Piston Seals Material : FKM, NBR

Max. Control Pressure : 10 bar

Working Temperature Range : -10~+60℃

Port Size : 3/8", 1/2", 3/4", 1", 1"1/4, 1"1/2, 2"

Structure : Piston

Position : 2/2way

Working Medium : Dry compressed air filtered by 40μm

Color : Silver

Contact Now

OMAL Pneumatic S.S.304/316 Coaxial Valve form 3/8" to 2" Port Size VC0E00003-VC0E00009 VA0E00003-VA0E00009 VD0E00003-VD0E00009 VC0V00003-VC0V00009 VA0V00003-VA0V00009 VD0V00003-V90V00009

How to order:

OMAL S.S.304/316 Coaxial Valve with 10 bar Max Pressure and -10~+60℃ Temperature Range for Air Flow Control

OMAL S.S.304/316 Coaxial Valve with 10 bar Max Pressure and -10~+60℃ Temperature Range for Air Flow Control

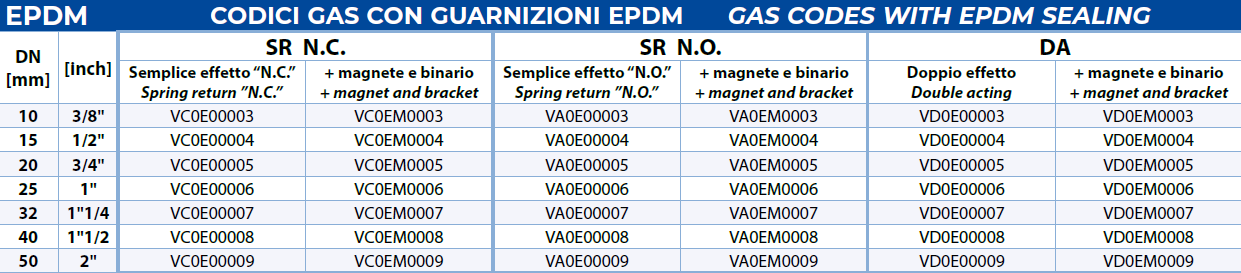

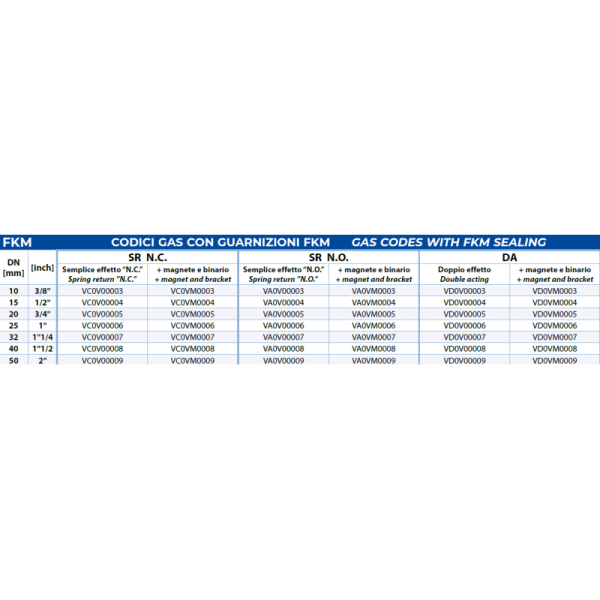

Order Codes:

VC0E00003 VA0E00003 VD0E00003 VC0V00003 VA0V00003 VD0V00003
VC0E00004 VA0E00004 VD0E00004 VC0V00004 VA0V00004 VD0V00004
VC0E00005 VA0E00005 VD0E00005 VC0V00005 VA0V00005 VD0V00005
VC0E00006 VA0E00006 VD0E00006 VC0V00006 VA0V00006 VD0V00006
VC0E00007 VA0E00007 VD0E00007 VC0V00007 VA0V00007 VD0V00007
VC0E00008 VA0E00008 VD0E00008 VC0V00008 VA0V00008 VD0V00008
VC0E00009 VA0E00009 VD0E00009 VC0V00009 VA0V00009 VD0V00009

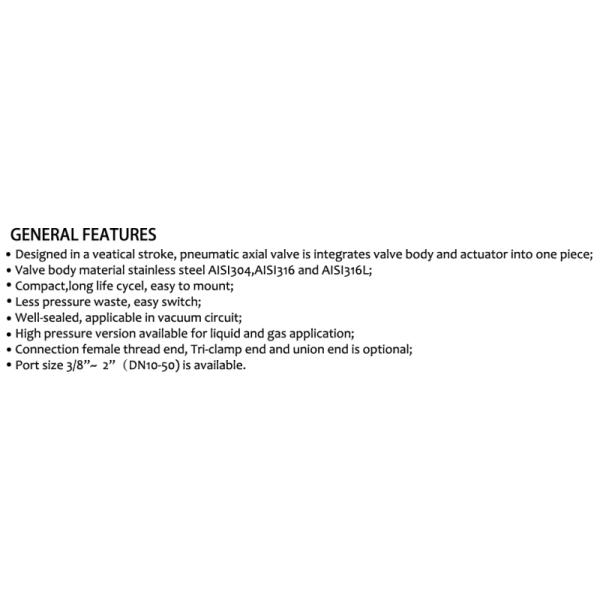

Genral Features:

OMAL S.S.304/316 Coaxial Valve with 10 bar Max Pressure and -10~+60℃ Temperature Range for Air Flow Control

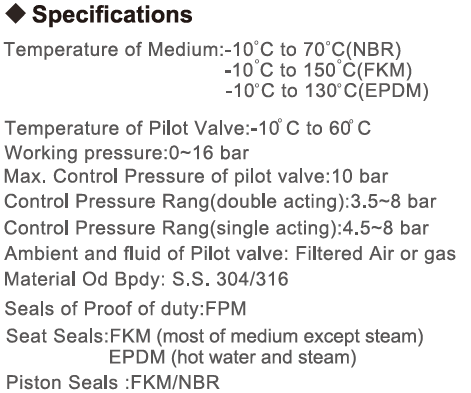

Specifications:

OMAL S.S.304/316 Coaxial Valve with 10 bar Max Pressure and -10~+60℃ Temperature Range for Air Flow Control

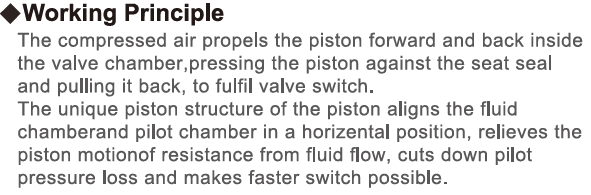

Working Principle:

OMAL S.S.304/316 Coaxial Valve with 10 bar Max Pressure and -10~+60℃ Temperature Range for Air Flow Control

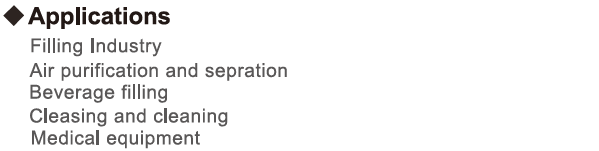

Applications:

OMAL S.S.304/316 Coaxial Valve with 10 bar Max Pressure and -10~+60℃ Temperature Range for Air Flow Control

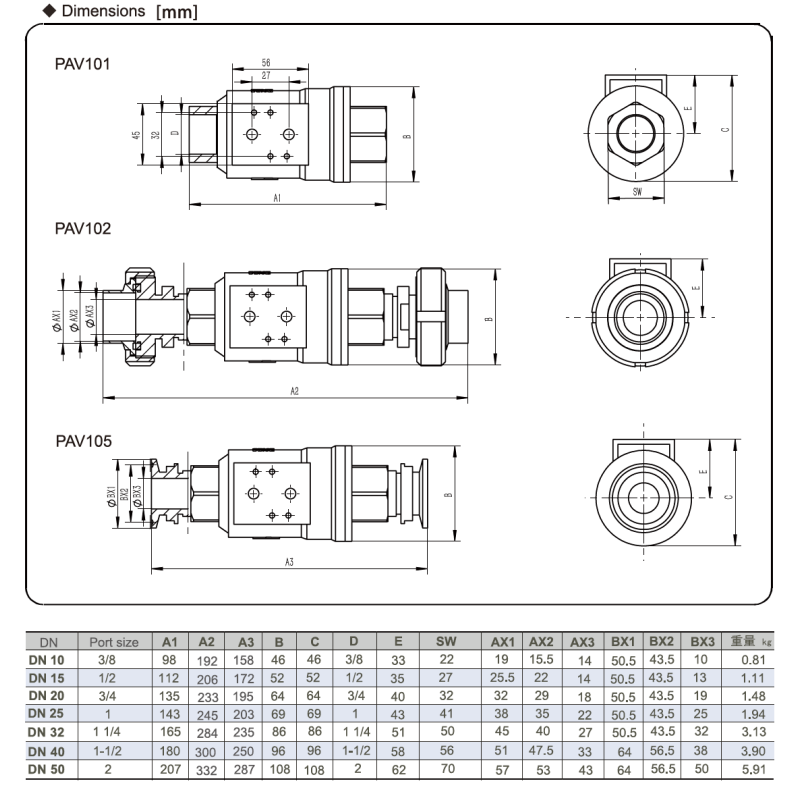

Dimensions:

OMAL S.S.304/316 Coaxial Valve with 10 bar Max Pressure and -10~+60℃ Temperature Range for Air Flow Control


Product Tags:

S.S.304/316 Coaxial Valve



10 bar Max Pressure Coaxial Valve



-10~+60℃ Temperature Range Coaxial Valve


Buy cheap OMAL S.S.304/316 Coaxial Valve with 10 bar Max Pressure and -10~+60℃ Temperature Range for Air Flow Control product

OMAL S.S.304/316 Coaxial Valve with 10 bar Max Pressure and -10~+60℃ Temperature Range for Air Flow Control Images
